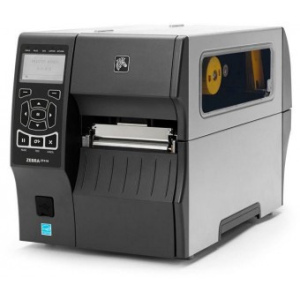

Zebra ZT410. Print technology: Direct thermal / thermal transfer, Maximum resolution: 203 x 203 DPI, Print speed: 356 mm/sec. Product colour: Black,Grey, Display: LCD. Connectivity technology: Wired, Optional connectivity: Serial (RS-232),USB 2.0. Media thickness: 0.058 - 0.25 mm. Built-in barcodes: Code 11,Code 128 (A/B/C),Code 39,Code 93,Data Matrix,EAN13,EAN8,MaxiCode,QR Code,TLC39,UPC-A,UPC-E, Ribbon width: 11 cm, Ribbon length: 450 m

- Integrated ThingMagic® RFID reader/encoder
- RFID system is available as a factory- or field-installable option
- Prints and encodes tags with a minimum pitch of 0.6”/16 mm
- Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C

RFID Features Continued
- Compliant with Global RFID radio to support multinational deployments
- Adaptive encoding technology automatically eliminates complex RFID placement guidelines
- Variable inlay placement supports a range of inlay positions for maximum media flexibility
- Auto-tag calibration for label lengths of 2” or greater
- Optimized for throughput of both small and large labels
- RFID job-monitoring tools track RFID performance
- Support for industry standard multi-vendor chip-based serialization (MCS)
- Supports block permalocking of user memory compatible with ATA Spec 2000
- RFID ZPL® commands provide compatibility with existing Zebra RFID printers


Printing

Print speed

356 mm/sec

Maximum print size

104 x 3988 mm

Maximum resolution

203 x 203 DPI

Maximum print height

3. 99 m

Colour

N

Print technology

Direct thermal / thermal transfer

Maximum printing width

10. 4 cm

Ports & interfaces

Wi-Fi

N

Ethernet LAN

Y

Connectivity technology

Wired

Optional connectivity

Serial (RS-232), USB 2. 0

USB 2. 0 ports quantity

1

RS-232 ports

1

Design

Product colour

Black, Grey

Display

LCD

Paper handling

Media thickness

0. 058 - 0. 25 mm

Weight & dimensions

Depth

495 mm

Weight

16. 3 kg

Height

324 mm

Width

269 mm

Operational conditions

Storage relative humidity (H-H)

5 - 85 %

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

5 - 40 °C

Operating relative humidity (H-H)

20 - 85 %

Performance

Ribbon width

11 cm

Ribbon length

450 m

Energy Star certified

Y

Built-in barcodes

Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A, UPC-E
